Compare frame materials, tube dimensions, weight ranges, and customization readiness across our commercial canopy tent series.
download Download PDF Manual
Oval tube iron folding tent with broad size coverage, black coated frame details, and customizable fabric color and wall thickness.
Outer Tube
30x30mm outside / 25x25mm inside / 25x12mm cross pipe
Weight Range
11kg to 20-31kg by size
Wall Thickness
0.4-0.8mm customizable
Material
Powder-coated iron frame
Square tube iron folding tent with reinforced frame details, multiple commercial sizes, and customized color options.
Outer Tube
30x30mm outside / 25x25mm inside / 25x12mm cross pipe
Weight Range
11.5kg to 23kg by size
Wall Thickness
0.4-0.8mm customizable
Material
Powder-coated iron frame
Semi-automatic iron folding tent with oval cross pipes, quick-release sliders, and adjustable height.
Outer Tube
33x33mm outside / 25x25mm inside / 26x13mm cross pipe
Weight Range
11kg to 18-26kg by size
Wall Thickness
0.4-0.8mm customizable
Material
Powder-coated iron frame (Oval cross pipe)
Heavy-duty hexagonal tube folding tent with 40x40mm profile, robust connectors, and high wind resistance.
Outer Tube
40x40mm outside / 34x34mm inside / 30x15mm cross pipe
Weight Range
14-23kg to 30-35kg by size
Wall Thickness
0.4-0.8mm customizable
Material
Hexagonal powder-coated iron frame

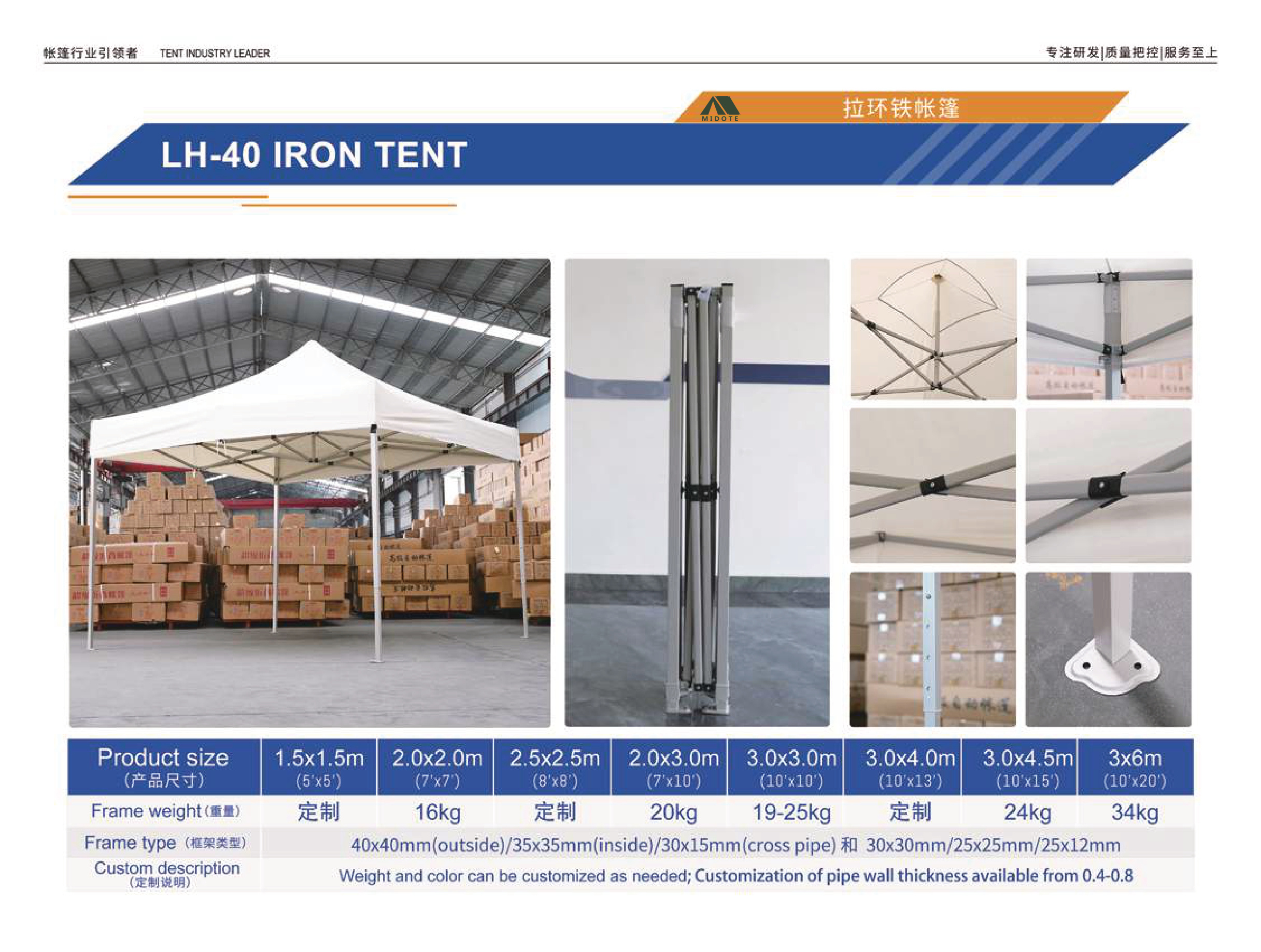

Durable folding tent with a secure pull-ring locking system, reinforced legs, and robust commercial build.
Outer Tube
40x40mm outside / 35x35mm inside / 30x15mm cross pipe
Weight Range
16kg to 34kg by size
Wall Thickness
0.4-0.8mm customizable
Material
Reinforced powder-coated iron frame

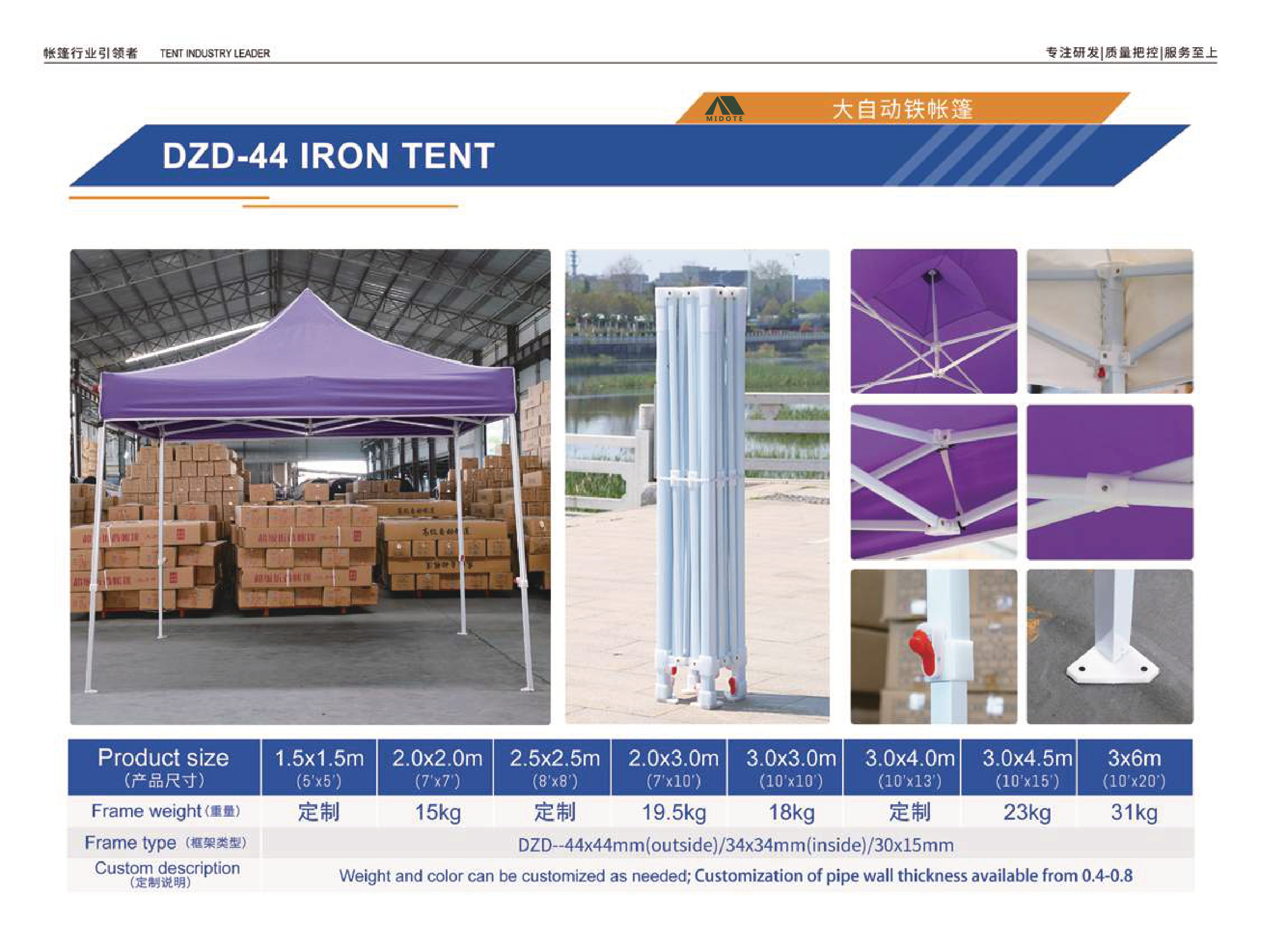

Large automatic folding tent with massive 44x44mm legs, supreme structure, and fast setup.
Outer Tube
44x44mm outside / 34x34mm inside / 30x15mm cross pipe
Weight Range
15kg to 31kg by size
Wall Thickness
0.4-0.8mm customizable
Material
Heavy-duty powder-coated iron frame

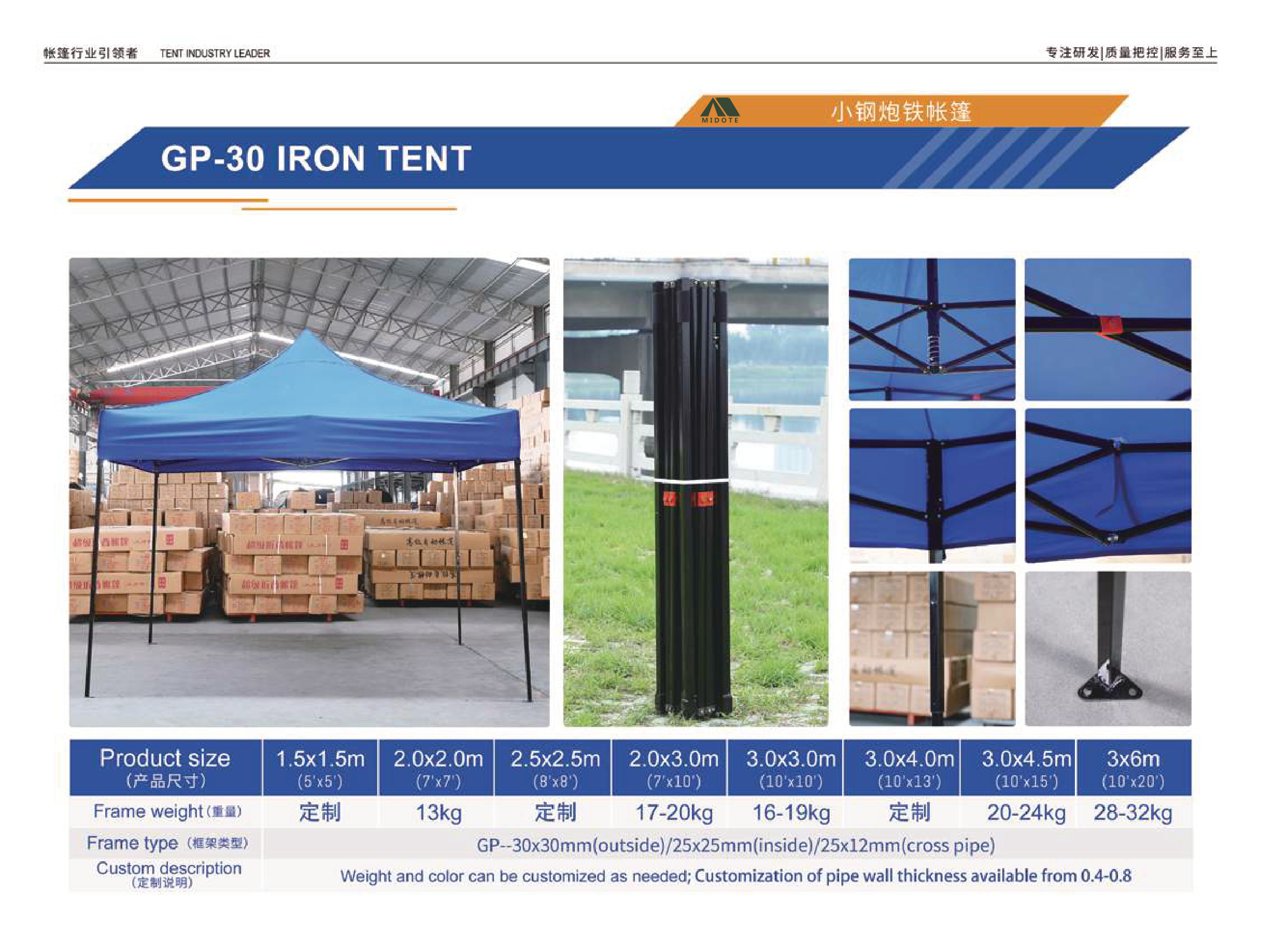

Compact high-density steel folding tent, known as the Small Steel Cannon, combining portability and high strength.
Outer Tube
30x30mm outside / 25x25mm inside / 25x12mm cross pipe
Weight Range
13kg to 28-32kg by size
Wall Thickness
0.4-0.8mm customizable
Material
High-density powder-coated steel frame

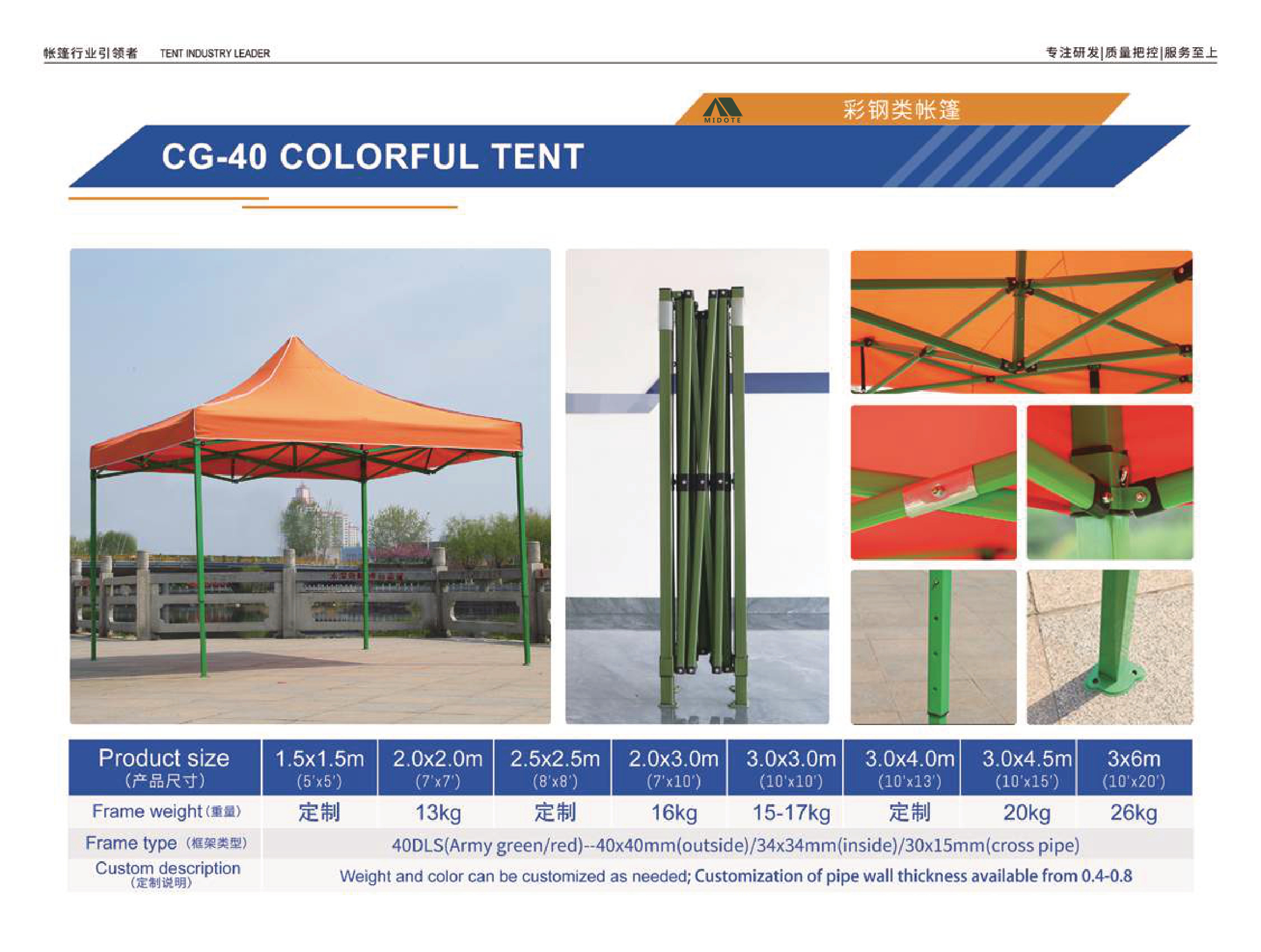

Vibrant color-steel folding tent series, ideal for eye-catching brand activations and retail promotions.
Outer Tube
40x40mm outside / 34x34mm inside / 30x15mm cross pipe (40DLS)
Weight Range
13kg to 26kg by size
Wall Thickness
0.4-0.8mm customizable
Material
Vibrant color-coated steel frame
Portable gazebo and car tent series with white frame, 3.0x3.0m standard size, and customizable fabric color and wall thickness.
Outer Tube
25x25mm outside / 20x20mm inside / 18x10mm cross pipe
Weight Range
11kg
Wall Thickness
0.4-0.8mm customizable
Material
White powder-coated metal frame

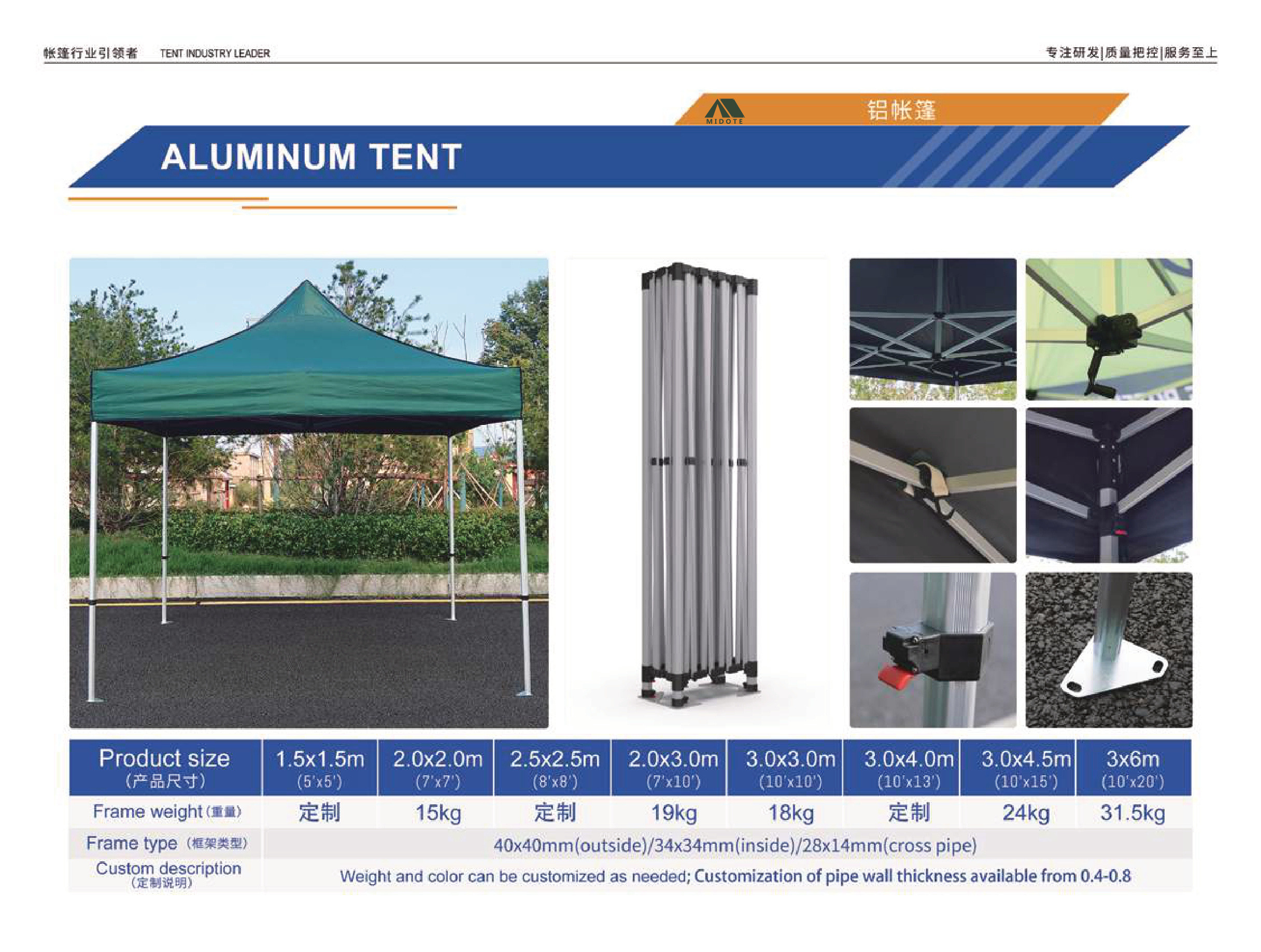

Premium lightweight aluminum folding tent, offering ultimate rust resistance and effortless portability.
Outer Tube
40x40mm outside / 34x34mm inside / 28x14mm cross pipe
Weight Range
15kg to 31.5kg by size
Wall Thickness
0.4-0.8mm customizable
Material
Anodized commercial-grade aluminum frame
